55″ 4K Ultra HD Quantum Dot SHARP Android TV™

Android TV 4K UHD

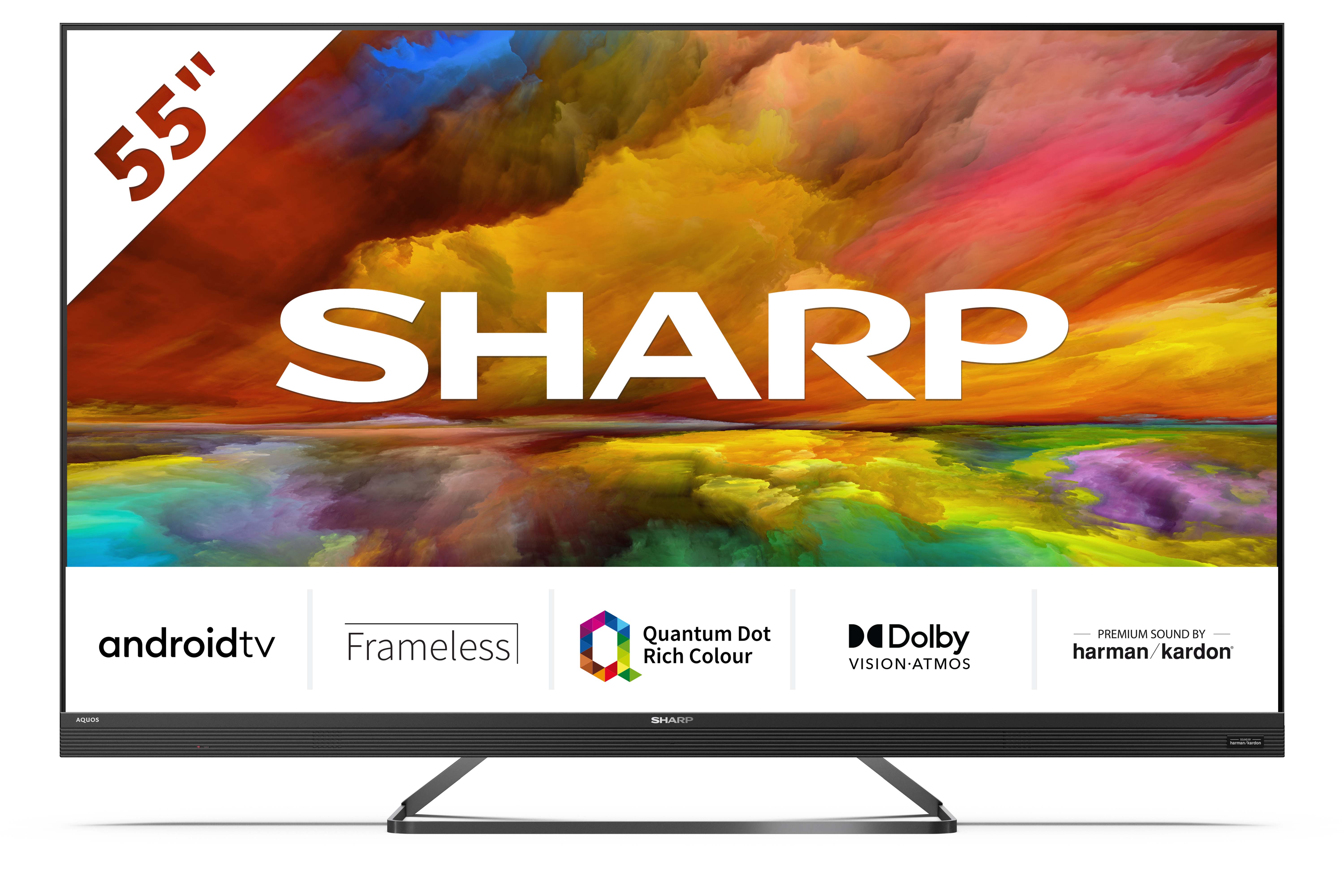

55″ 4K Ultra HD Quantum Dot SHARP Android TV™

55EQ3KA

75″ 65″ 55″ 50″

4K Ultra HD Android TV™ with Quantum Dot
Full Aluminium Slim Frameless Design
HDMI 2.1 with eARC and ALLM
Dolby Vision™ – cinema-inspired HDR
Dolby Atmos® – full 360° sound experience
DTS:X immersive audio codec
DTS Virtual:X 3D audio post processing
Hybrid HARMAN/KARDON® Speaker System
AQUOS UltraClear Video Processor
AQUOS Smooth Motion – Frame Interpolation Technology
Light Sensor with OPC (Optical Picture Control)

Energy label

The 55EQ3KA is a 4K Ultra High Definition Frameless Quantum Dot Sharp Android TV™ with exceptional multimedia functionality.

Sharp 55EQ3KA displays the ultimate colour gamut using Quantum Dot Technology – Q-COLOUR. Any HDR or Dolby Vision content looks life-like with perfect colour reproduction.

The Hybrid Harman/Kardon sound system has a unique driver setup – front firing tweeters and down firing woofers. A combination that ensures perfect sound clarity and solid bass reproduction.

Advanced dts Virtual:X and Dolby Atmos technologies delivers virtual height and multi-channel virtual surround for the best home cinema experience. Integrated Google Assistant offers quick and helpful support and makes operating simple thanks to voice control.

Experience the magic of AR

Use your phone to place our product in your home effortlessly and see how it perfectly complements your style or explore every detail in 3D.

Premium design with full aluminium body

Timeless design and superb styling make your new Sharp TV a harmonious addition to your home. Made of elegant aluminium alloy, the frameless screen seems to float above the surface on which it is standing. And we give you two great designs to choose from: one in sophisticated black, with a ribbed speaker cover, and one in stylish silver, with a perforated speaker cover. At Sharp we believe that a TV not only has to display the highest quality images, but it also has to be stylishly and made of the highest quality materials. In a word – the Sharp EQ series.

Perfect sound and clear dialogues with high fidelity Harman Kardon sound system

Combining stylish design with functionality was also the goal when constructing the audio system. The front speaker grille is designed to give you clear and undistorted sound. Together with Harman / Kardon we have created a unique two-way audio system with front-firing midrange and treble and down-firing bass. The high tones reach your ears directly, ensuring crystal clear dialogues, while the low tones reflect off the surface on which the TV stands giving you rich, spacious background music. All of this is enclosed in casings with a capacity of nearly 500 ccm per channel, something quite unique in the world of televisions. In addition, the redesigned power supply of the amplifier made it possible to achieve a harmonic distortion ratio (THD) of approximately 1%, ten times better than standard TV solutions.

Brilliant colors and high picture dynamics with Quantum Color Technology

The new Sharp EQ series uses the ultra-modern VA LCD matrix with direct LED backlight and a Quantum Dot (Quantum Colour) layer. It provides the widest range of colour reproduction currently available in LCD TVs. This translates into perfect colour reproduction of not only the most saturated parts of the image, but also significantly improves tonal transitions, realistically reproducing colours and skin tones, as well as the nuances of a blue sky or the greens of an ocean. The Sharp EQ series TV can reproduce 94% of the colours in the DCI.P3 set and 78% of the BT.2020 set. These are truly stunning results, and you can see the difference with the naked eye!

High brightness (400-500 nits) for the best HDR experience

To enjoy excellent HDR (High Dynamic Range) images, a TV needs to be able to provide a high level of brightness. Only then you can really see all the depth and detail, especially when both darker and brighter zones occur simultaneously. The Sharp EQ Series delivers a peak brightness of 450 – 550 nits. For you, that means a really stunning visual experience when watching HDR content.

Dolby Vision for 12-bit colour HDR content support

Dolby Vision is one of the highest incarnations of the HDR standard. It surpasses “ordinary” HDR in many respects, not only in the number of bits describing the image. First of all, in Dolby Vision, metadata describing lighting and colour conditions are available for each frame separately. This especially impacts the quality of feature-length materials that is rich in both light and dark scenes. For each of these scenes, you can define separate settings, which ensures better reproduction and perception of the scenes. Today, virtually every leading streaming platform offers movies and series compatible with Dolby Vision, so that you can watch it on your new Sharp EQ series in stunning quality.

AQUOS Motion estimation and compensation for the smooth picture motion

To ensure perfect image fluidity, especially in scenes with fast-moving objects, the Sharp EQ series TVs are equipped with the Aquos Motion smoothing system. The artificial intelligence system implemented in the ultra-efficient image processor analyses the image “frame by frame” taking moving objects into account and, if necessary, generates additional frames to increase smoothness. The user has full control of the Aquos Motion system, and for purists who want to watch content without additional processing – in full cinematic style – it can be turned off.

Light sensor for automatic brightness adjustment

The Sharp EQ Series TV delivers beautifully bright images, but ambient lighting conditions change dynamically throughout the day, and manual brightness changes can be a hassle. An evening cinema session with the full brightness suitable for the middle of a clear day is not necessarily the best experience. That is why the new Sharp EQ series TV is equipped with an ambient light sensor that automatically and intelligently adjusts the backlight and matrix brightness. The automatic brightness function has another advantage – it saves energy. Your Sharp EQ-Series knows exactly which settings are optimal for the moment, increasing your comfort and lowering your energy bills. You don’t have to do anything but enjoy your favourite show.

For the ultimate gaming experience with four HDMI inputs and low input lag

All four HDMI ports of the new Sharp EQ series TV are equipped with the latest and fastest HDMI standard so that you can enjoy all the benefits provided by the latest video and audio connections, as well as PCs and consoles. That means you can use the extended eARC feedback functionality, which is important for connecting to soundbars or amplifiers. The ALLM function switches the TV set to low-latency mode by turning off all post-processing functions when you connect a console or PC. You’ll find all these features in the new Sharp EQ Series TV.

Specifications

3D sound processing Dolby Atmos®, DTS:X®

Diagonal Screen Size cm 139

Diagonal Screen Size Inch 55

Energy Class G

HDR support HDR10, HLG, Dolby Vision™

Panel Resolution (HxV) In Pixel 3840 x 2160

TV Product Features

Operating System Android 11

Pre-installed Apps Netflix, Youtube, Google Play Movies & TV, Google Play Store, Prime Video

USB Video MKV, MP4, MOV, AVI, MPG, MPEG, 3GP, 3GPP, ASF, FLV, WEBM, VOB, DAT, TS, TRP, TP

USB Music MP3, M4A, AAC, AC3, EAC3, DTS, WAV, FLAC, LPCM

USB Photo JPG, JPEG, BMP, PNG, GIF, MPO

FreeviewPlay Yes

Media Network Streaming (Video, Photo, Music) Yes / Yes / Yes

HbbTV Yes (v 2.0.2)

USB File System FAT16, FAT32

USB 4K Video Yes

Digital Programme List Yes

BBC iPlayer Yes

Home Media Server Yes

Google Assistant With Microphone Yes

OTA Updates Yes

Google Cast Yes

HDMI eARC Yes (HDMI1)

AQUOS Smooth Motion – Frame Interpolation Technology Yes

Auto Low Latency Mode (ALLM) Yes

HDMI CEC Yes

Sky remote code 2134

I/O Systems

Antenna Input Yes

Satellite Input Yes

HDMI 4K @ 60 Hz (2.1) x4

USB x2

3.5mm Headphone jack / line-out Yes

RJ 45 (LAN – 10BASE-T/100BASE-TX) x1

Wi-Fi Max Transmitter Power 100 mW at 2,412 GHz – 2,472 GHz; 100 mW at 5,150 GHz – 5,350 GHz; 100 mW at 5,470 GHz – 5,725 GHz

Remote Control IR+BT

Remote Control Design AN4512C (IR) + AN2101 (IR+BLE)

Bluetooth Yes

Micro SD card slot x1

Mini Composite/CVBS + Audio input Yes

Digital Optical Audio Output Yes

Video Systems

TV System (ATV) PAL, SECAM

TV System (DTV) DVB-T/T2/C/S/S2 (MPEG4 + H.265/HEVC (10-bit))

Video system HEVC/H.265 (10-bit), MPEG4/H.264, VP9, AV1

Display Systems

Diagonal Screen Size cm 139

Diagonal Screen Size Inch 55

Panel Resolution (HxV) In Pixel 3840 x 2160

Dynamic Contrast 1 000 000:1

Backlight Scanning False

Active Motion 1000

HDR support HDR10, HLG, Dolby Vision™

Backlight Quantum Dot

Audio Systems

Speaker Front firing silk tweeter + down firing woofer

Speaker power (W) 2x 15W

Sound System BG, DK, I, L, L’, M, N

Sound Settings Sound Equaliser

Audio decoder Dolby Digital, Dolby Digital Plus, Dolby AC-4

Sound Technology Harman-Kardon

Audio enhancement solution DTS Virtual:X™

3D sound processing Dolby Atmos®, DTS:X®

Power Information

Power Requirements AC 220-240V ~ 50/60Hz

Power Consumption (ecomode/standard/max) (W) 99/160/179

Power Consumption (W) 102

Standby Power Consumption (W) <0,50

Energy Class G

Plug UK Plug

Auto Power Off Yes

AC Operated Yes

Safety Logo Certification CE (RED, RoHS, ErP), REACH/PAH/SCCP

EPREL https://eprel.ec.europa.eu/qr/1037404

Logistic Information

Unit Size (W x H x D in mm) 1228 x 736 x 61

Unit Weight (kg) 14.9

Packaging Content Product, 2x Remote control, 4x AAA batteries, TV stand installation pack, Quick start guide, Safety leaflet

Box Size (W x H x D in mm) 1335 x 875 x 160

Gross Weight (kg) 20.3

Net Size with Stand (W x H x D in mm) 1228 x 805 x 262

Dimension Between Stand Feet (in mm) 560

VESA Standard (mm) 200 x 200
